OVS Expedition PRO+ (2020–2027 Gladiator) — Feature shot: three-quarter view with optional OVS crossbars
Expedition PRO+ Truck Cap 2020–2027 Jeep Gladiator · Full Glass Wing Doors
SKU: 70200003
Authorized Overland Vehicle Systems dealerFactory warranty honored · Fitment help from people who run this gear
$3,599.99
Bundle & Save
Complete Your Rig
Add what you need for your setup. Each item goes straight to your cart.
Expedition Truck Cap Crossbars – 55 in (Pair)
Free with this truck cap
Add it to your cart and it rings up at $0 through Oct 31.
Features
Marine-grade stainless steel construction, 16 GA side panels
E-coat plus electrostatic-plated 2-stage textured black powder coat
Five-piece modular design with vehicle-specific True-Fit design
Full open-assist wing doors on high-pressure gas struts
Full window panels with panoramic tempered glass
Slider portal in the window for on-demand airflow
Included MOLLE panel window cage for storage and security
MOLLE-PAL channels inside the wing doors
Tempered safety glass
Modern keyed-alike lockable latches and heavy-duty hinges
Weatherproof gasket sealing package
Pressure air vent to reduce condensation
Integrated roof rails with 19 mm T-slot: 750 lb static, 325 lb driving with OVS crossbars
High-visibility 3rd brake light (Gladiator uses its factory tailgate light)
No-drill clamping installation in about 1–2 hours
Limited lifetime warranty
Specs
- Shell material: Marine-grade stainless steel, 16 GA side panels
- Construction: Five-piece modular, vehicle-specific fit
- Color: Textured black powder coat over e-coat
- Dynamic capacity (on-road): 325 lb with OVS crossbars
- Static capacity (parked): 750 lb with OVS crossbars
- Compatibility: 2020–2027 Jeep Gladiator · 5 ft bed · Part 70200003
Dimensions
- Weight: 247.35 lb
- Expedition PRO+ truck cap with window MOLLE cages (5-piece modular shell)
- No-drill bed rail clamps
- 3M single-bulb seal for the bed rails and bulkhead
- Bulb seal on the rear hatch for the tailgate
- Two pieces of butyl tape for the bulkhead step-down
Authorized
Dealer
Dealer
Ride Off Grid is an authorized Overland Vehicle Systems dealer. Your cap comes new from OVS with the full factory warranty.
Not sure it fits your trim? Call or chat with us and we can check it with OVS for you.
Day or night: 608-351-0240 support@rideoffgrid.com
Limited lifetime warranty from OVS.
Free shipping within the contiguous U.S. Availability for each bed length is shown above Add to Cart.
Returns are accepted within 30 days of delivery on unused items in the original packaging, with prior authorization from Ride Off Grid. Change-of-mind returns carry a 25% restocking fee, and the customer pays return freight. Report damaged or defective items within 7 days of delivery. See our refund policy for full details.
Why this cap over the usual
Source: OVS comparison data against three common cap builds.
Material thickness
16 GAOVS
vs 17–20 GA on other stainless, steel-frame and aluminum caps
Install time
1–2 hrOVS
vs 2–6 hours for the other builds
Corrosion protection
E-coatOVS
vs none of the three other builds
Warranty
LifetimeLimited
vs 3 years on ferritic stainless caps
See the Expedition PRO+ up close
- Glass wing doors with a slider portal for airflow
- Roof rails: 750 lb static · 325 lb driving with OVS crossbars
- No-drill clamp install, about 1–2 hours
Video: New Products Overview by Nupe! - Expedition Truck Cap Side Windows & 270/180 Awning Annex Room
How it compares
The Expedition PRO+ against the three most common cap builds. Source: OVS comparison data.
| Feature | OVS Expedition | Stainless (ferritic) caps | Steel frame + aluminum | Double-wall aluminum |
|---|---|---|---|---|
| Material | Marine-grade stainless steel | 3CR12 ferritic stainless | Steel frame, aluminum panels | Double-walled aluminum |
| Thickest material | 16 GA | 17–20 GA | 18–20 GA | 18 GA |
| E-coat corrosion protection | Yes | No | No | No |
| Construction | 5-piece modular | 6-piece | 6-piece | 5-piece |
| Sliding side windows | Yes (PRO+) | Yes | No | No |
| Typical install time | 1–2 hours | 3–5 hours | 4–6 hours | 2–4 hours |
| Warranty | Limited lifetime | 3 years | Limited lifetime | Not listed |
Pick the right OVS cap
Soft shell
Explorer Soft ShellCanvas soft shell on a lightweight aluminum frame.Hard shell
Expedition PROStainless cap with full wing doors and a 3rd brake light.
You are here
Expedition PRO+Adds full window panels with a slider portal.
Know before you buy
Will it fit my trim?Not compatible with GM Carbon Pro beds or RAM RamBox. Spare-tire bed mounts or other accessories in the way must come off first.
Is it waterproof?A 3M bulb seal for the bed rails and bulkhead, a tailgate seal on the rear hatch and two pieces of butyl tape are included. No truck bed is fully airtight; the tailgate edge is the usual leak point.
How much can the roof carry?With OVS crossbars, 325 lb while driving and 750 lb parked. Enough for a rooftop tent.
Does the front window open to the cab?No. The cab-side window is fixed, with no drop-down or pass-through.
How much can the doors hold?About 15 lb of mounted gear per door, so the gas struts keep working properly.
Can I add OVS door or side-frame MOLLE panels?No. The PRO+ door already has an integrated MOLLE panel, and the window cage leaves too little room for side-frame panels.
See it in action

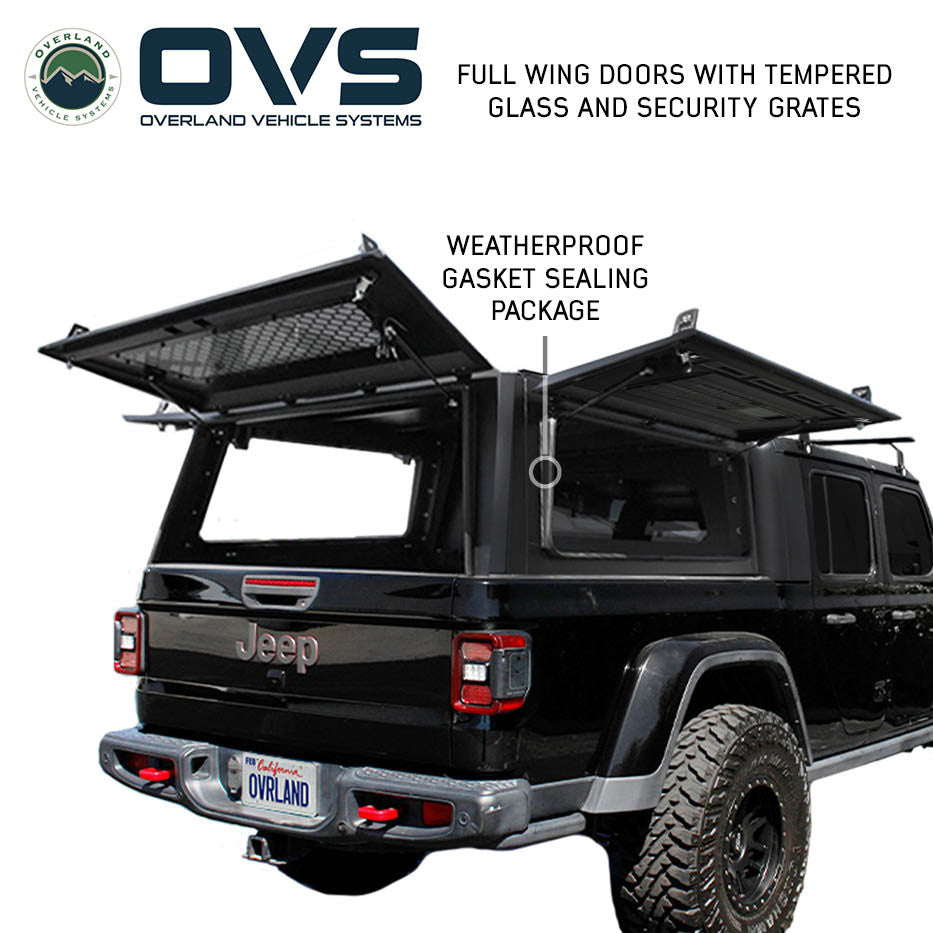

Open the whole side
Gas-strut wing doors give full access from either side of the bed.

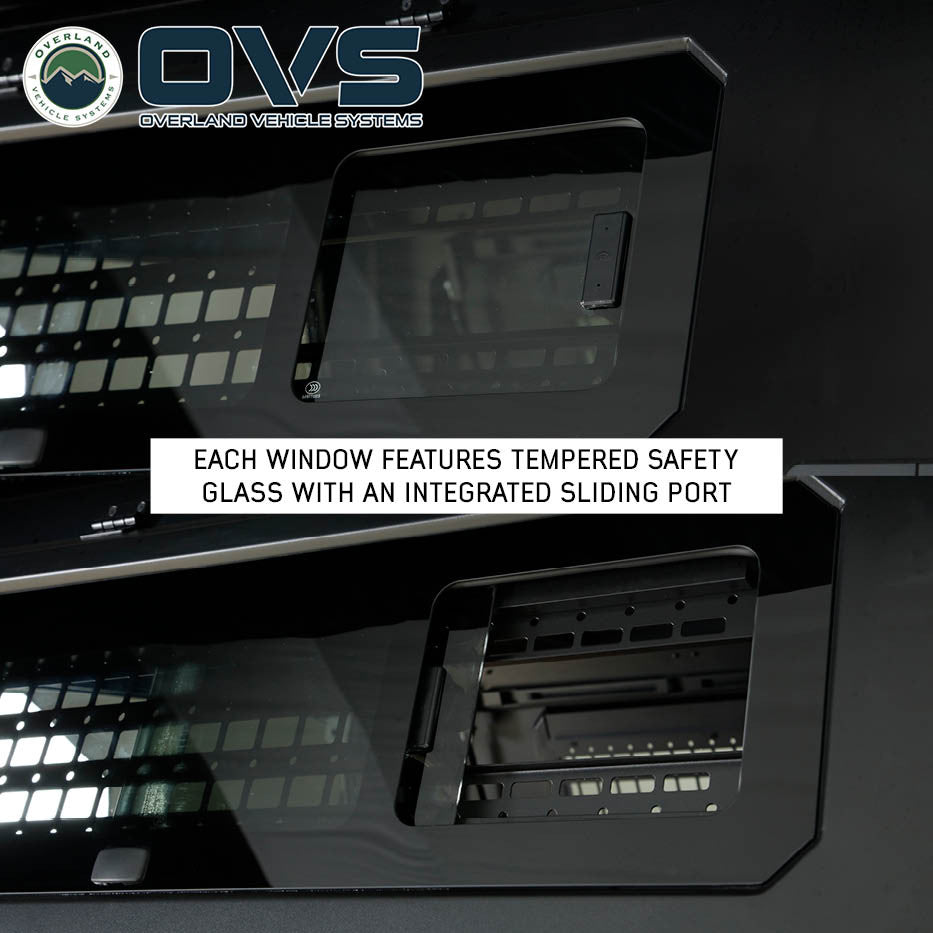

Airflow on demand
A slider portal in the glass window panel.

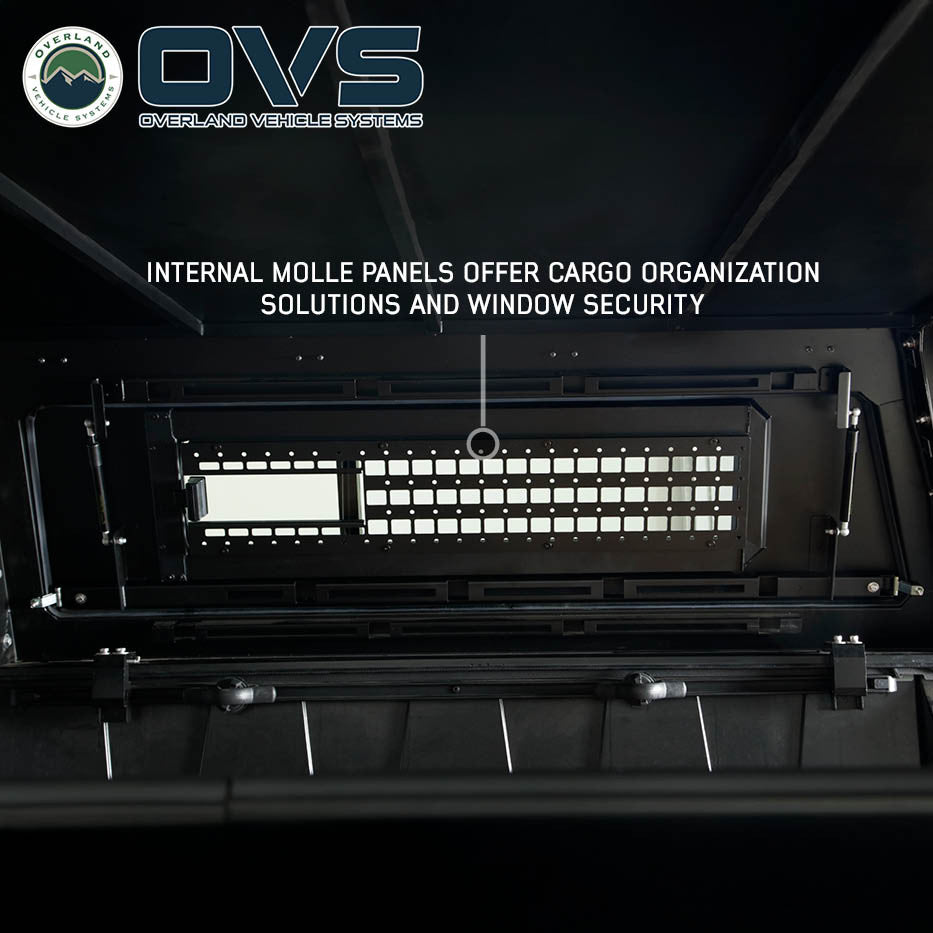

Room for the load
A five-piece stainless shell over the full bed.

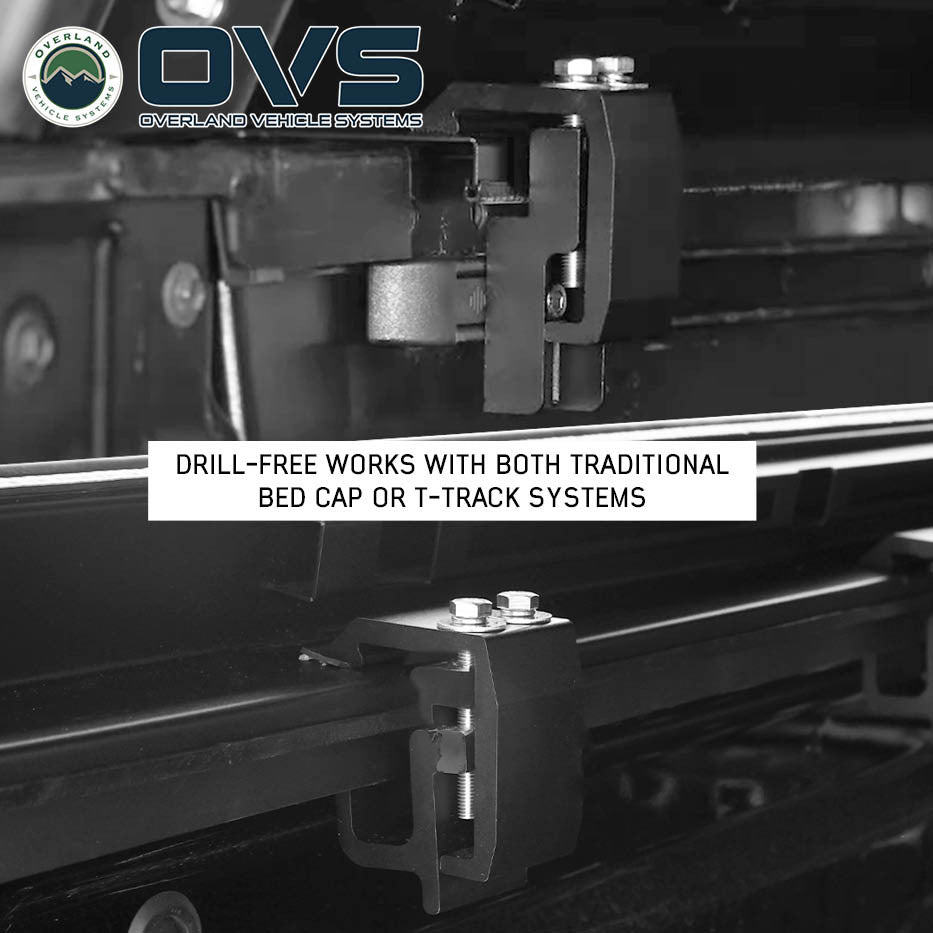

No drilling
Clamps to the bed rails in about 1–2 hours.
