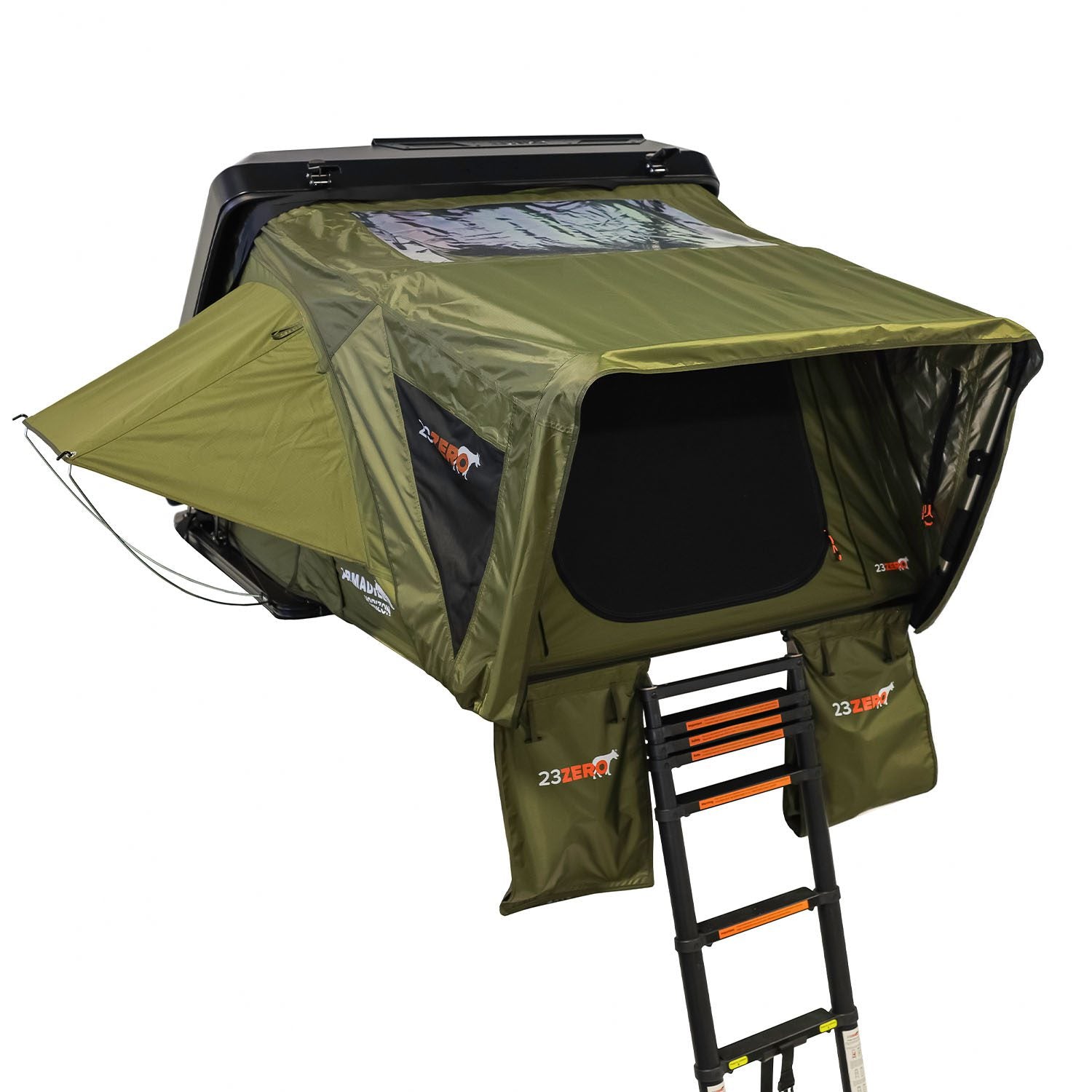

23ZERO Armadillo Horizon 3 — Feature shot: front three-quarter view of the fully deployed hardshell tent
Armadillo Horizon 3Aluminum Side-Opening Clamshell · Sleeps 3
SKU: 230HSARMH3L
By: 23ZERO
Authorized 23ZERO dealerFactory warranty honored · Free freight shipping in the contiguous U.S.
$4,295.00
ClamshellSleeps 3Aluminum
Complete Your Rig
Add what you need for your setup. Each item goes straight to your cart.
See the Armadillo Horizon 3 in action
The official 23ZERO video for the Armadillo Horizon 3.
- Sleeps 3
- 14 GA Aluminum Shell
- Gas-Strut Setup
- Heater/Cooler Port
Video: 23ZERO Armadillo Horizon 3
Features
- Fast, Simple Setup: Gas-strut-assisted hinge system delivers lightning-fast deployment and takedown. Front rainfly hoop design replaces spring poles.
- Superior Climate Control: ECO13B fabric with LST keeps the sleeping area cooler and darker. Integrated heater/cooler port accepts up to 5" ducting.

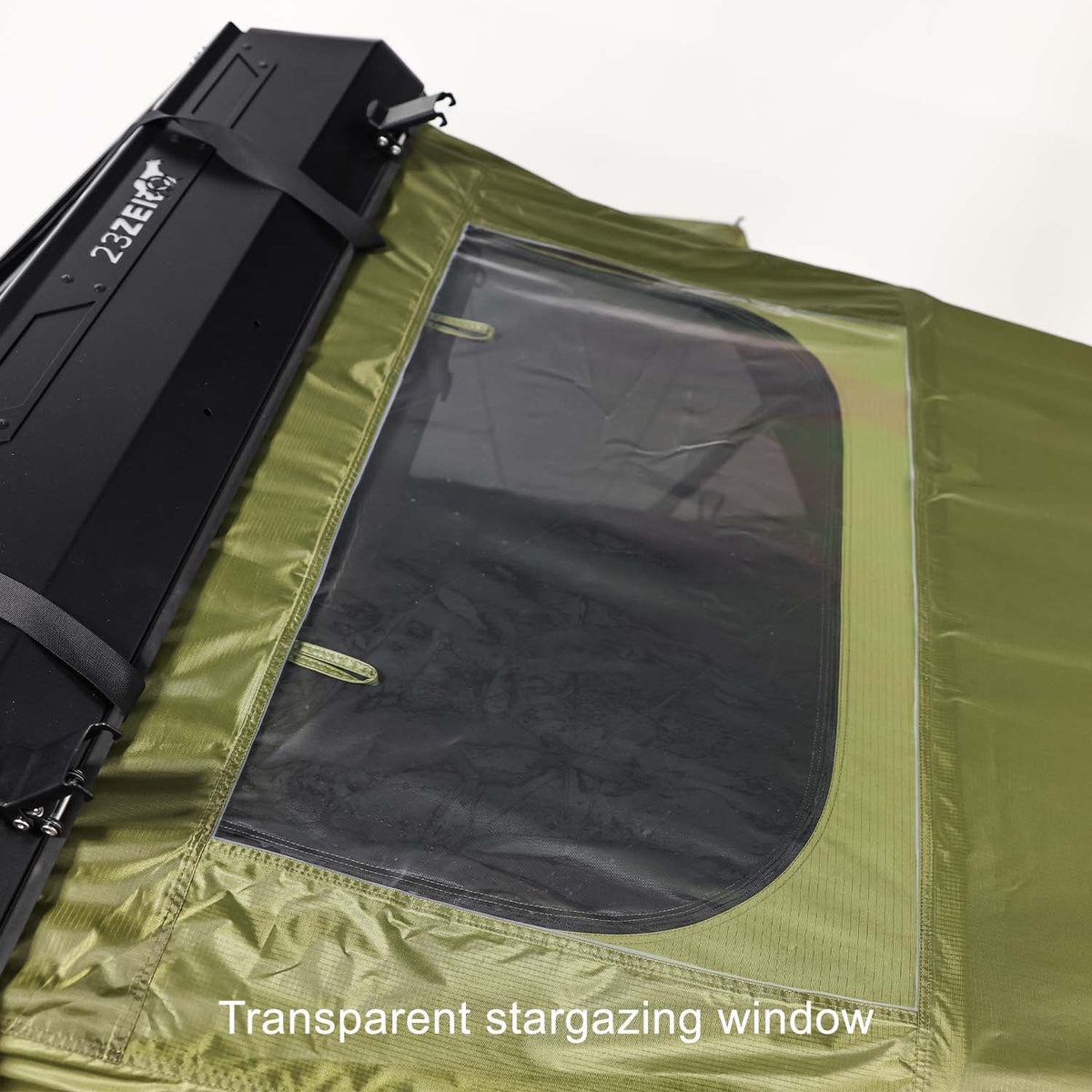

- Unmatched Views & Ventilation: 360° visibility with oversized mesh-screened windows — entry door (39"x30"), side windows (45"x23"), stargazer sky (36"x22").
- Integrated Power & Lighting: USB LED light bar (59") with dimmable white/amber/blended modes. Power module with 12V socket, USB-A, USB-C wired to a preinstalled SB-50 Anderson plug.
- Rugged, Aerodynamic Design: 14 GA fully welded aluminum hardshell, rounded corners reduce wind resistance and road noise.
- Tent-Top Utility: Dual adjustable T-slot roof rails (45"x2.75") offer 22 lb load capacity.
Specs
- Shell material: Aluminum
- Construction: 14 GA fully welded aluminum shell with rounded corners
- Tent fabric: ECO13B recycled 900D polyester Oxford with LST
- Mattress: 2" self-inflating mattress with dual fill ports
- Blackout fabric: Yes (LST coating)
- Tent style: Clamshell
- Sleeps: 3
- Capacity category: Mid-size
- Season rating: 4 Seasons
- Heater port: Yes
- AC port: No
- Compatibility: Universal: mounts to factory or aftermarket crossbars and racks rated for the tent's weight
- Anderson port: Yes
- USB charging: Yes
- Interior lighting: Yes
- Skylights: Yes
Dimensions
- Weight: 246 lb
- Closed dimensions: 75.25 in x 55.5 in x 13.25 in
- Open dimensions: 89 in x 75.25 in x 50.5 in
- Interior dimensions: 83 in x 68 in x 46 in
- Tent with self-inflating mattress, preinstalled ladder and mounting kit
- Four window poles (32.5") with bag
- Boot bag and hanging gear bag
- Snow pole and tensioning leg
- Two guy lines and two stakes
- Four mounting plates and eight sliding mounting plate sets
- 13mm ratcheting box wrench and 5mm Allen wrench
- Four rail end caps
- Two handles with hardware
- Four T-bolt sets for the roof rails
- Small repair kit and spare parts bag
Authorized
Dealer
Dealer
Ride Off Grid is an authorized dealer of 23ZERO. We carry their hard shell and soft shell rooftop tents because the build quality holds up to real trail use, and your order ships direct from 23ZERO's authorized US distribution network.
Day or night: 608-351-0240 support@rideoffgrid.com
Ships from:
23ZERO's authorized US distribution network
23ZERO covers this tent with a 2-year limited manufacturer's warranty (transit covers and straps: 1 year) against defects in materials and workmanship, for the original purchaser, on tents bought and located in the contiguous U.S. It does not cover ordinary wear and tear, misuse, storm or UV damage, low-clearance impacts, zipper wear, or full-time living, commercial or rental use.
Ships by LTL freight, typically 7–14 business days. Free shipping on all rooftop tent orders in the contiguous U.S.
30-day return window from delivery date. Item must be unused, undamaged, and in original packaging. Change-of-mind returns incur a 25% restocking fee. Buyer covers return shipping unless the item arrived damaged or defective.
In Stock
How it compares
Every 23ZERO tent family we carry, side by side, from 23ZERO's product pages. — means 23ZERO doesn't list it. Tap a tent to see it.
| Feature |
 Kabari
|
 You are hereArmadillo Horizon
|
 Onyx Triple X
|
 Walkabout 2.0
|
|---|---|---|---|---|
| Style | Clamshell (Z-lift or wedge) | Side-opening clamshell | Wedge clamshell, Triple-X hinge | Soft shell fold-out |
| Shell | Aluminum (SuperFly: PVC on aluminum frame) | 14 GA welded aluminum | Aluminum on honeycomb base | ECO13B soft shell, PVC travel cover |
| Sleeps | 2 | 2–3 | 2 | 3–6 |
| Tent fabric | ECO13B with LST | ECO13B with LST | 320 GSM LST canvas | ECO13B with LST |
| Mattress | Self-inflating (Z) or 2 in foam | 2 in self-inflating | 2.75 in foam + topper | Rebound foam |
| Heater/cooler port | 2 ports | 1 port | 2 diesel heater ports | 1 rear port |
| Built-in power | Kabari Z only | 12V, USB-A, USB-C | 12V, USB, USB-C | — |
| Skylight | Kabari Z moon roof | Yes | 24 × 15 in | Sky windows |
| Roof bars / rails | Crossbars included | T-slot rails, 22 lb | Crossbars included | — |
| Annex room | — | Optional | — | Optional |
| Closed height | 7.75–9.5 in | 13.25 in | 8.75 in | 14 in |
| Warranty | 2 years | 2 years | 2 years | 2 years |
| Weight | 105–204 lb | 205–246 lb | 184 lb | 152–198 lb |
| Models | 2 | 2 | 1 | 3 |
| Starting price | $2,495 | $3,995 | $3,295 | $2,495 |
Pick the right 23ZERO tent
Hard shell clamshell
KabariTwo-person clamshells: an aluminum Z-lift with 58 in of headroom, or a 105 lb PVC wedge.- Kabari Z: 2mm aluminum, Z-lift, 12V/USB power hub
- SuperFly: 105 lb, 7.75 in closed
- Two heater/cooler ports, crossbars included
You are here
Armadillo HorizonA 14 GA welded aluminum shell that opens high on gas struts, for two or three.- 12V, USB-A, USB-C power via Anderson SB-50
- Skylight, heater/cooler port, T-slot roof rails
- Optional annex room
Wedge hard shell
Onyx Triple XA low-profile aluminum wedge for two, with an external Triple-X hinge for more room inside.- Triple-X hinge: more interior room, steadier in wind
- 12V, USB, USB-C power via Anderson SB50
- Two diesel heater ports, crossbars included
Soft shell fold-out
Walkabout 2.0Four-season fold-out soft shells in queen, cal-king and six-person sizes.- ECO13B fabric with LST blackout coating
- Rear heater/cooler port, sky windows
- 600D PVC travel cover
Compare Armadillo Horizon models
Only what changes between the 2 Armadillo Horizon models. Everything else is shared. — means 23ZERO doesn't list it.
| Feature |
Armadillo Horizon 2
|
 You are hereArmadillo Horizon 3
|
|---|---|---|
| Sleeps | 2 | 3 |
| Sleeping area | 78 × 51 in | 83 × 68 in |
| Closed (L × W × H) | 62 × 52.5 × 13.25 in | 75.25 × 55.5 × 13.25 in |
| Open (L × W × H) | 80 × 62 × 49 in | 89 × 75.25 × 50.5 in |
| Interior height | 43 in | 46 in |
| Heater/cooler duct | Up to 4.5 in | Up to 5 in |
| Skylight | 36 × 20 in | 36 × 22 in |
| LED light bar | 43 in | 59 in |
| Gear loft | 6 pockets | 10 pockets |
| Weight (with rails & ladder) | 205 lb | 246 lb |
| Price | $3,995 | $4,295 |
Armadillo Horizon series in the wild
Photos from 23ZERO of Armadillo Horizon tents in use.
See it in action

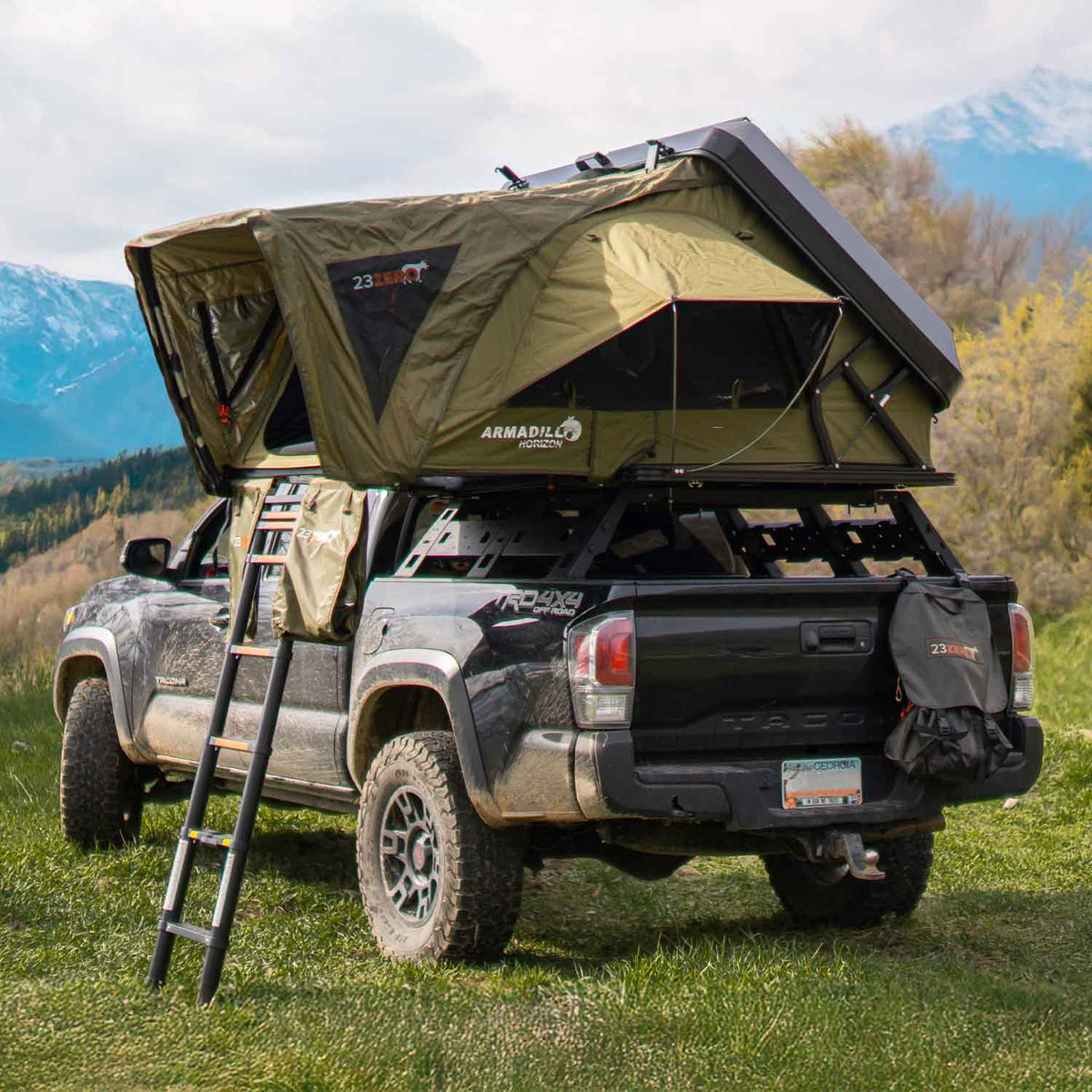

Your Basecamp, Anywhere
Mounted on a truck at the trailhead, the Horizon 3 turns any parking spot into a basecamp for multi-day backcountry runs.
Open and Ready to Camp
Popped open and standing tall, the hardshell converts from road mode to a full sleeping setup fast enough to squeeze in one more mile before dark.

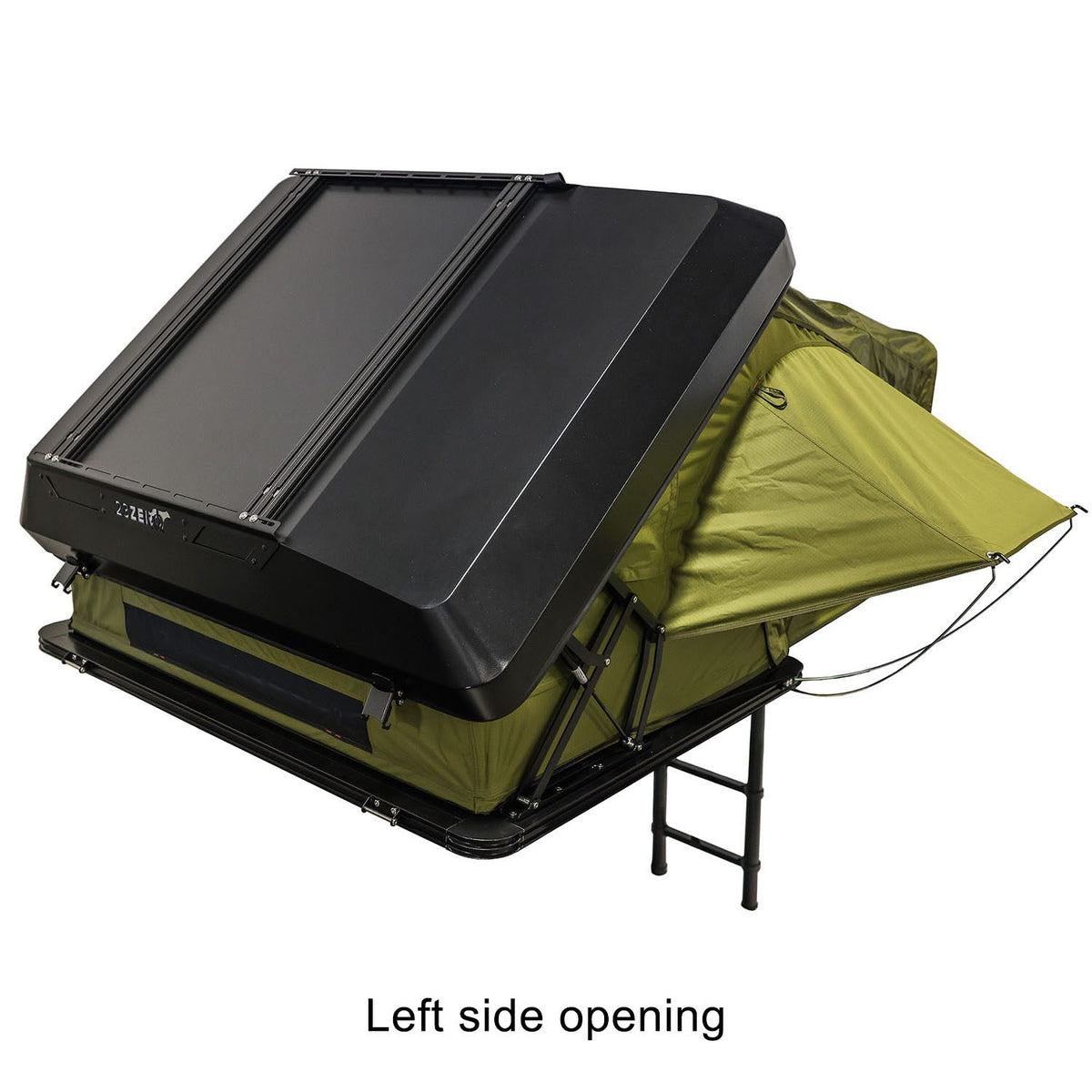

Room to Stretch Out
The extended footprint gives a full-size sleeping platform, room enough for gear, layers, and a crew settling in after a long day on the trail.

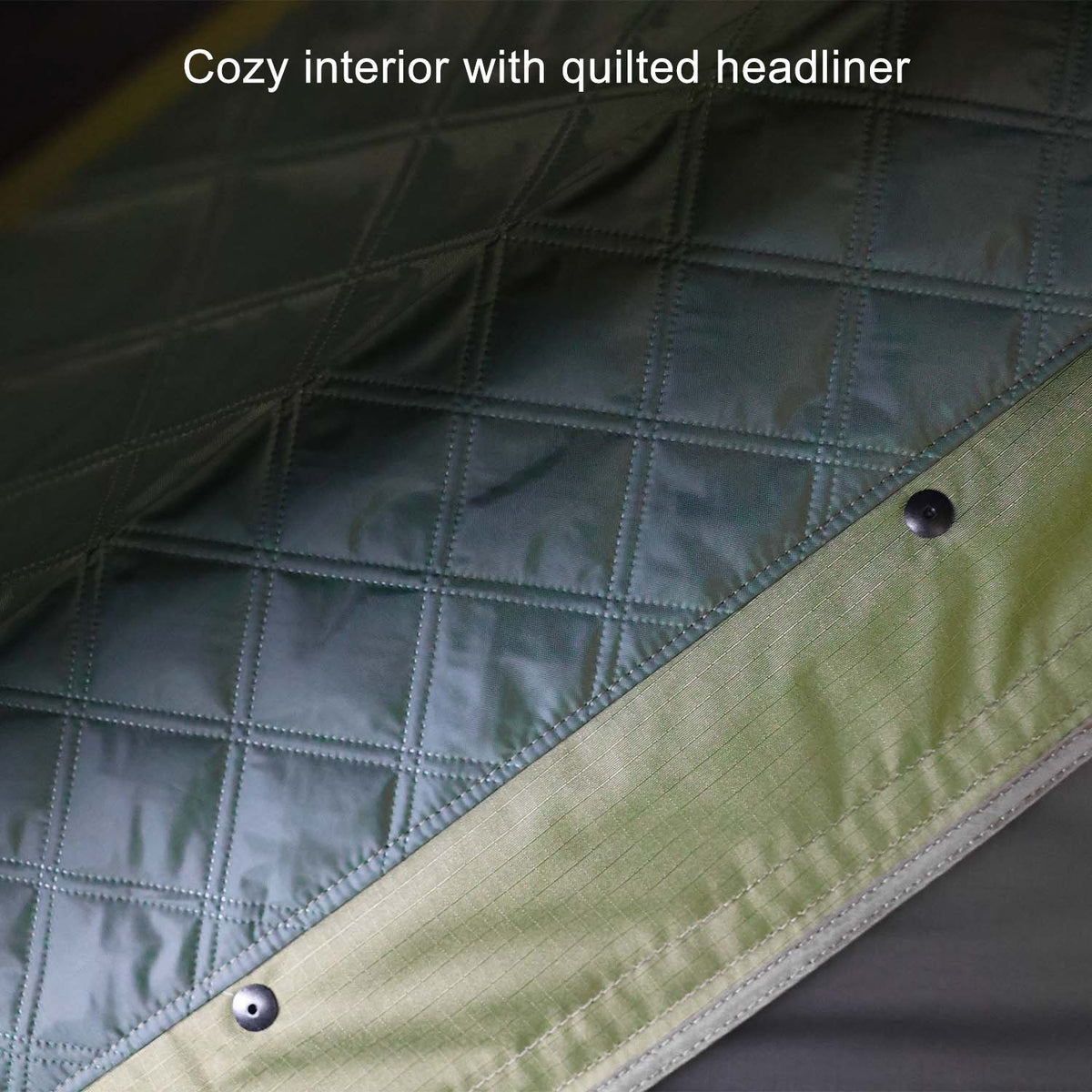

Home for the Night
Backed into camp and fully deployed, it's the kind of setup that turns a random pull-off into tonight's stop.

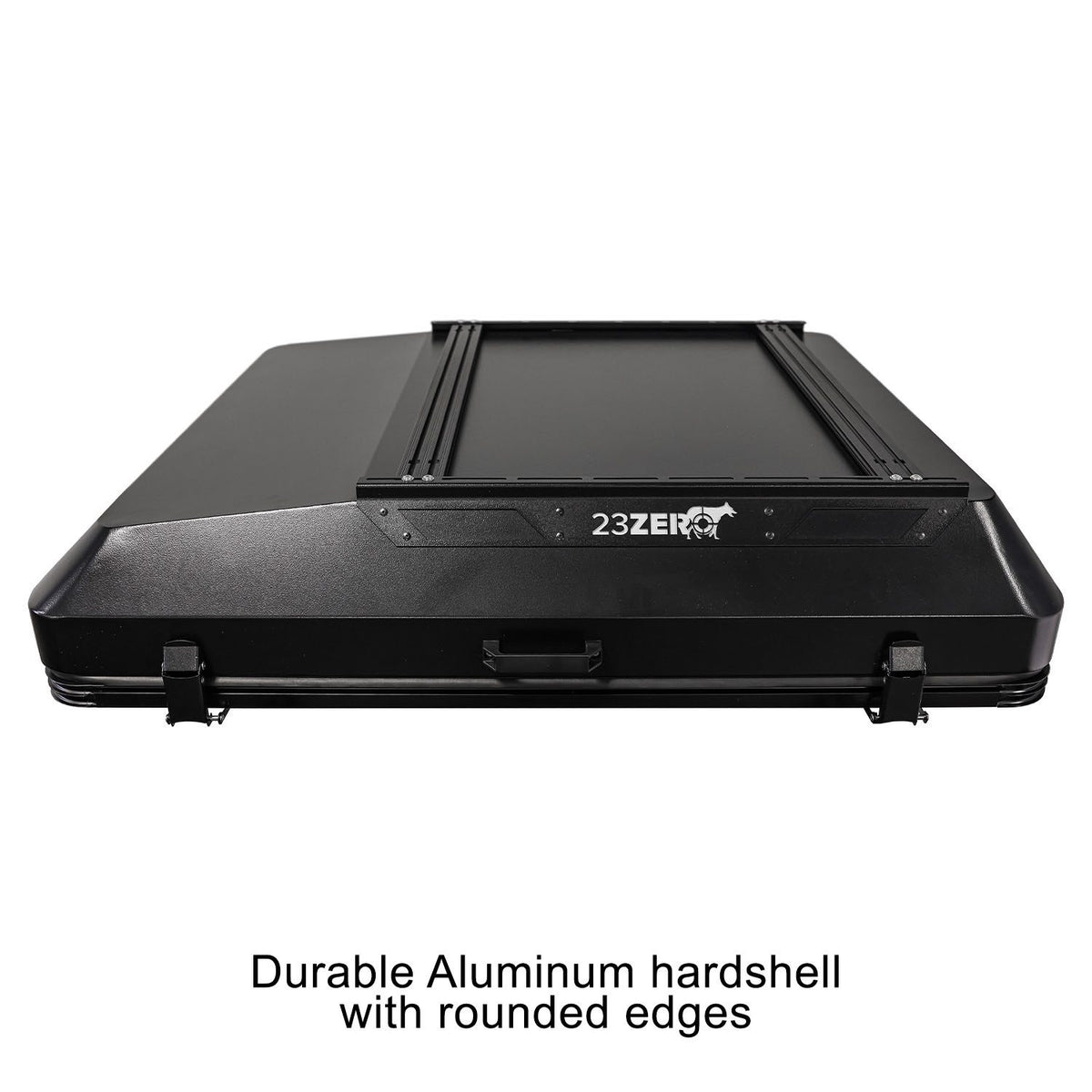

Locked Down for the Drive
Closed up low and aerodynamic, it rides quietly on the highway until the next trailhead turnoff.

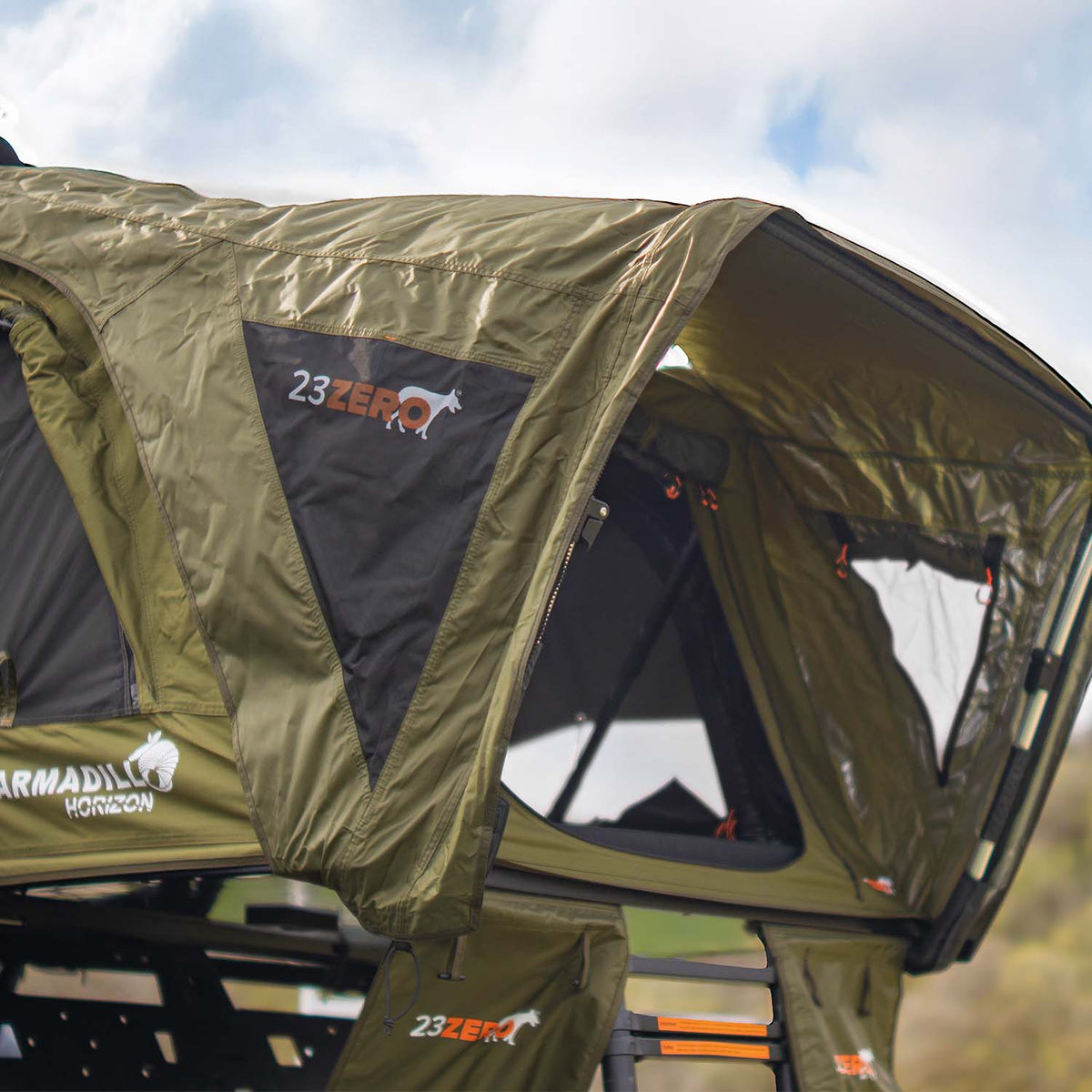

Easy Entry, Day or Night
The wide entrance makes climbing in after dark or ducking out for a sunrise hike simple, with no fumbling required.
