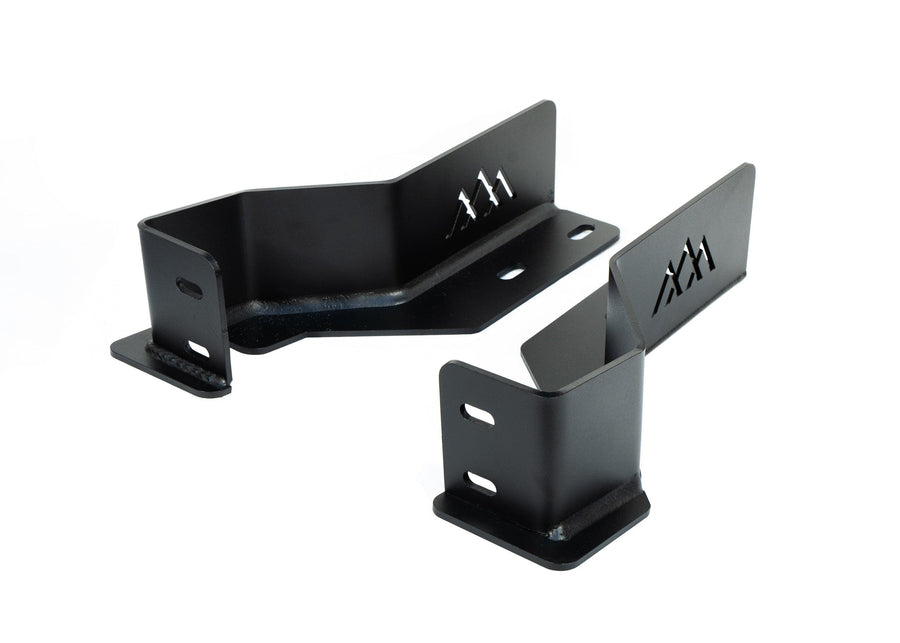

Backwoods Adventure Mods Frame Support Brackets (2016–2023 Tacoma) — Feature shot: pair of powder-coated frame support brackets
Front Bumper Frame Support Brackets 2016–2023 Toyota Tacoma · Frame support for winching
SKU: BWTT3A-8725
Authorized Backwoods Adventure Mods dealerFactory warranty honored · Fitment help from people who run this gear
$149.00
Features
- Ties the factory bumper mounts to the front sway bar mounts
- Spreads winching and recovery loads across more of the frame
- 3/16 in steel, black powder coat
- Sold as a pair with hardware
- Bolt-on, can go in after the bumper
- Built for BAM Hi-Lite front bumpers
Specs
- Construction: 3/16 in steel brackets with black powder coat
- Color: Black powder coat
- Compatibility: 2016–2023 Toyota Tacoma · Part BWTT3A-8725
- Pair of frame support brackets (driver and passenger)
- Hardware kit (Tacoma kit includes new sway bar bolts)
Authorized
Dealer
Dealer
These brackets tie a Backwoods Hi-Lite front bumper back to the sway bar mounts, giving winch and recovery loads a second path into the frame. They're optional, but Backwoods recommends them for anyone who winches.
Day or night: 608-351-0240 support@rideoffgrid.com
Backwoods Adventure Mods backs the structure of this product with a lifetime warranty for the original purchaser, covering defects in material and craftsmanship under normal use. The powder coat finish carries a 60-day warranty against defects. Damage from improper installation, alteration, abuse, accidents, corrosion or normal wear isn't covered.
Ships free to the lower 48 states with tracking provided.
Returns or exchanges accepted within 10 days of delivery.
Why add frame support brackets
A second load path for every winch pull.
Steel
3/16in
Formed steel, powder coated black.
Sold as
2brackets
Driver and passenger side, with hardware.
Install
Bolt-on
Before or after the bumper goes on.
See it up close
- Where the brackets sandwich between frame and sway bar
- Step-by-step bolt-on install on a 3rd gen Tacoma
- How the brackets wrap to the factory bumper studs
Video: [2016+] Toyota Tacoma – Frame Support Brackets Install
Questions we get
Do I need these brackets?They're optional, but Backwoods strongly recommends them if you plan to winch or do recoveries.
Can I add them after the bumper is on?Yes. They bolt on with the bumper already installed.
Will I need to trim anything?Some trucks need a light trim of the plastic fender liner for clearance.
Do they work with aftermarket suspension?On Tacomas with a shock reservoir bracket at the sway bar mount, you may need longer bolts or a small bracket modification.
Which bumpers do they fit?They're built for the Backwoods Hi-Lite front bumpers for the matching truck.
See it in action

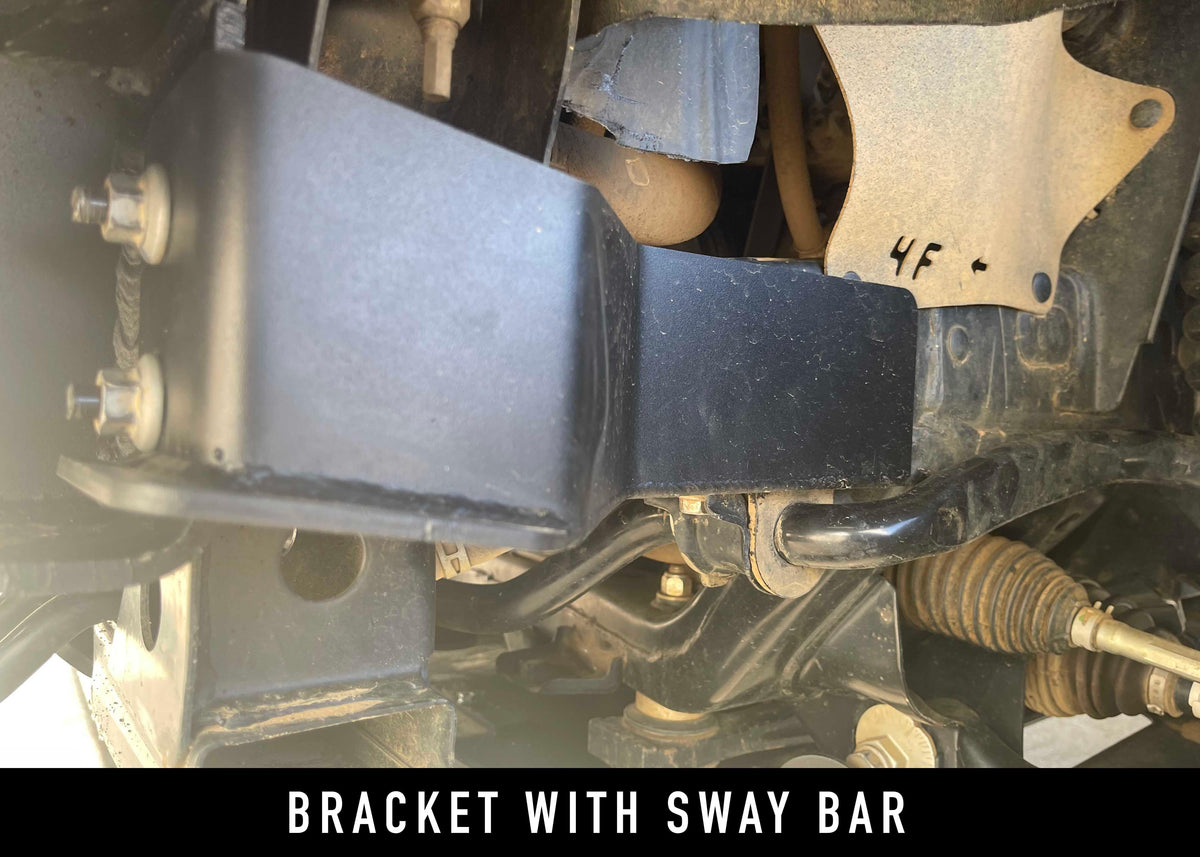

Sway bar sandwich
The bracket sits between the frame and factory sway bar, then wraps to the bumper studs.

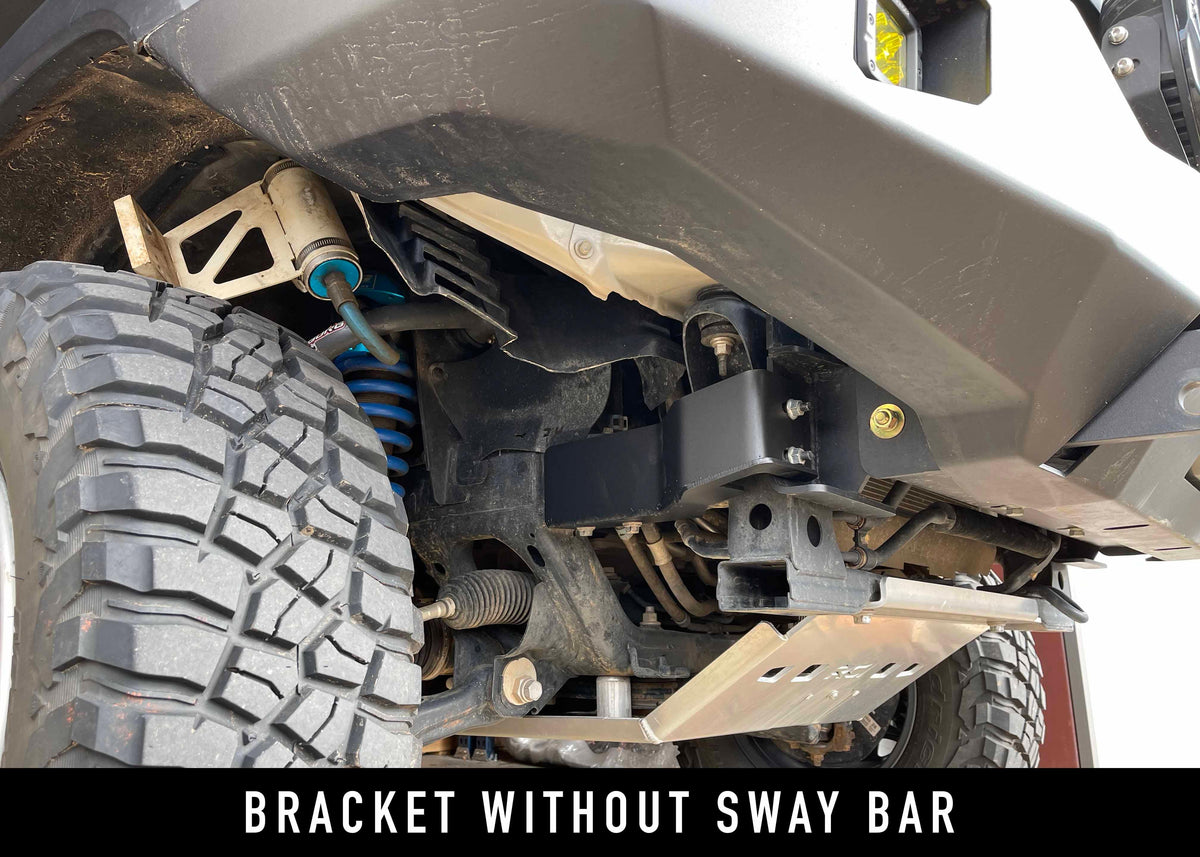

No sway bar? Still fits
Mounts cleanly on trucks running without a front sway bar.

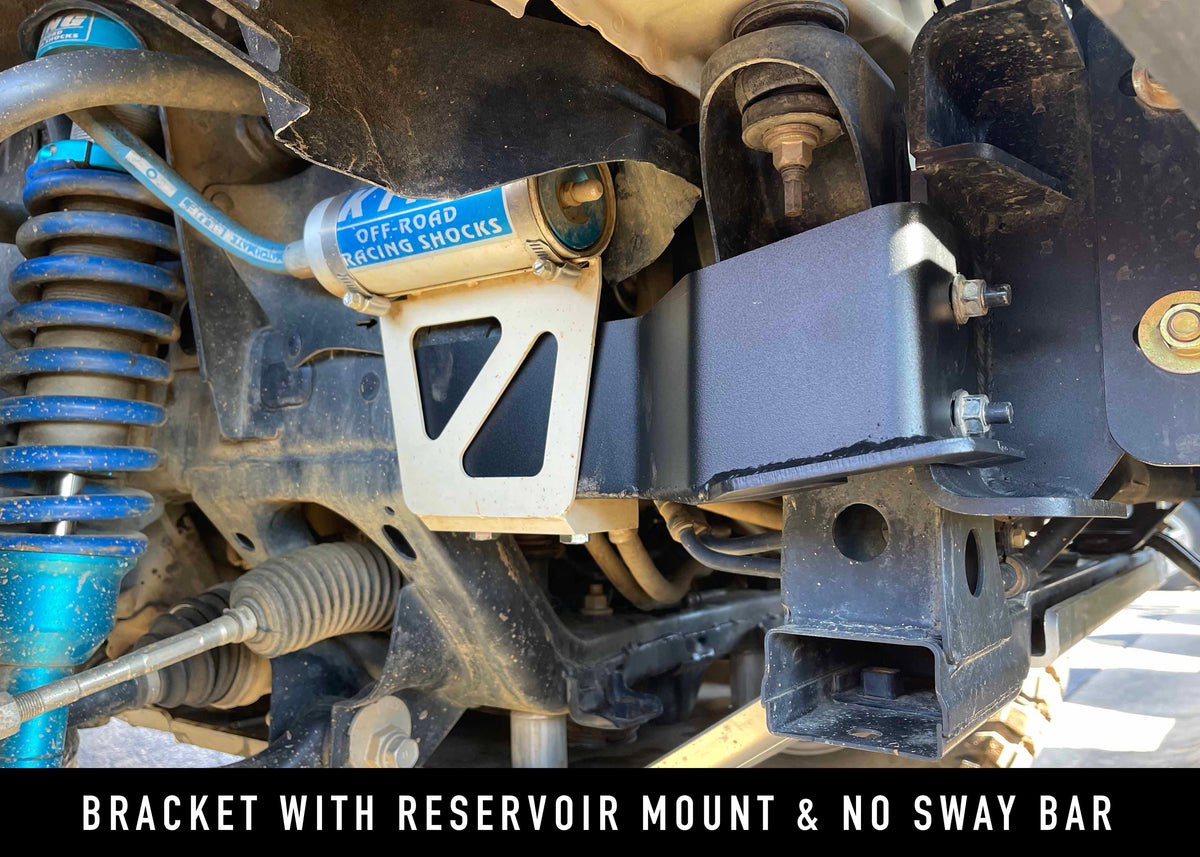

Reservoir-mount setups
Works next to aftermarket shock reservoir mounts, sometimes with longer bolts.

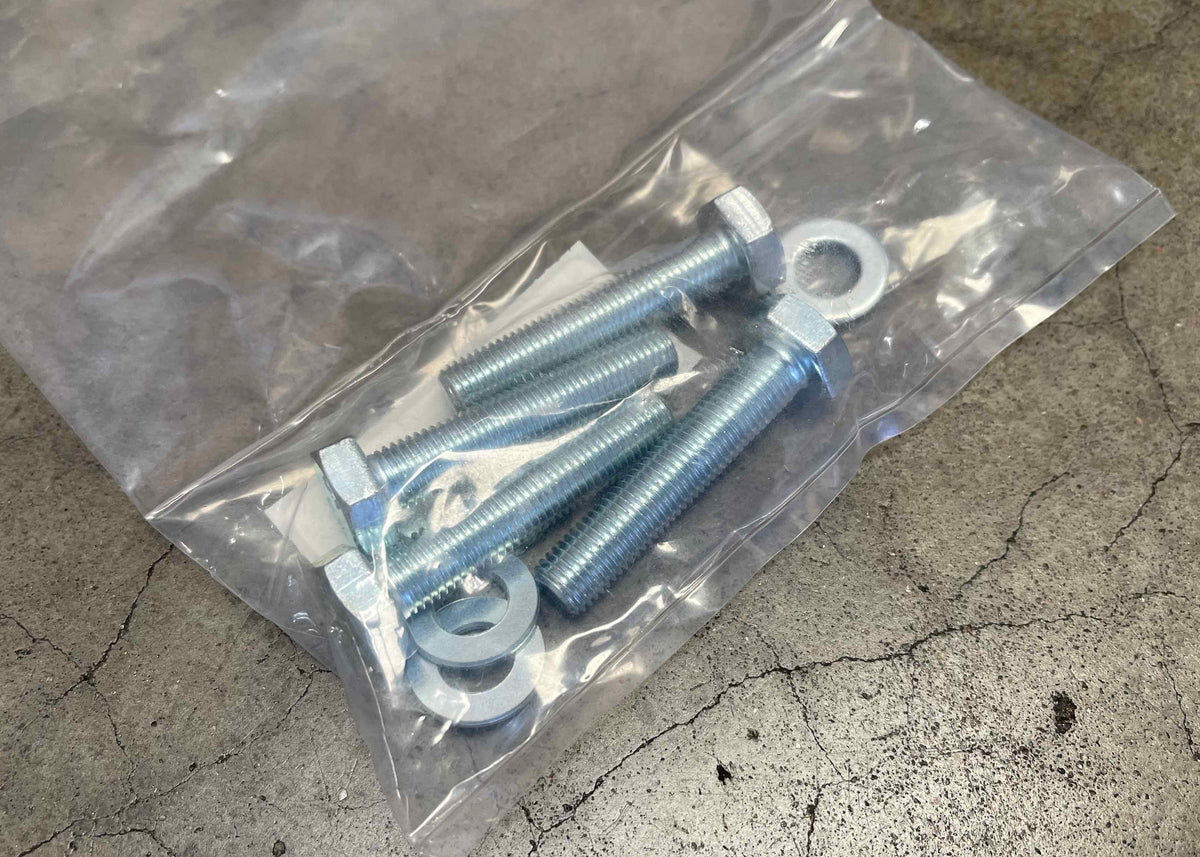

Hardware included
Comes with the hardware kit, including new sway bar bolts.
