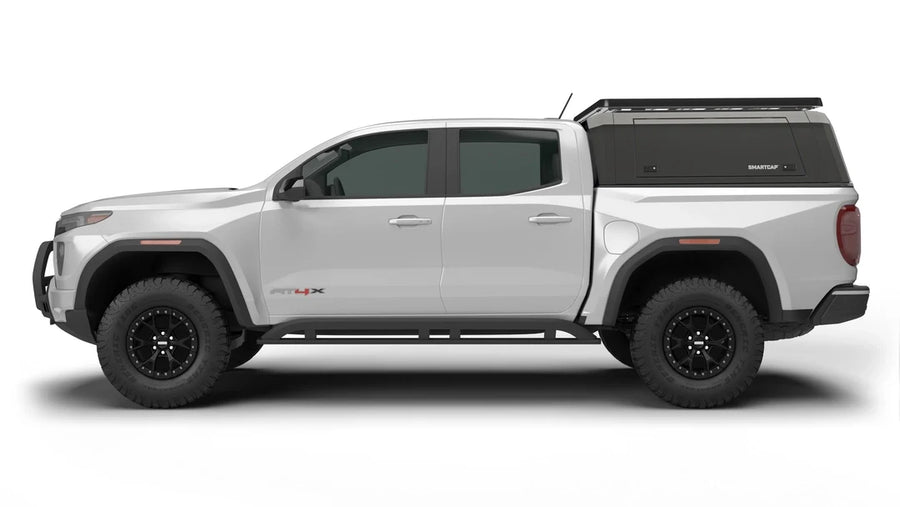

Leitner ACS ROOF platform rack low profile no-drill platform rack, installed on the vehicle, main view
Leitner ACS ROOF Platform Rack for RSI SmartCap Truck Caps - No-Drill T-Slot Truck Cap Roof Rack
ACS ROOF · SKU: 00-5.0MTCR-1802
By: Leitner Designs
$1,195.00
- No-Drill SmartCap Mount
- 1,000 lb Static Load
- 6061-T6 Aluminum
- Adjustable Load Bars
- T-Slot Compatible
- USA Made
A heavy-duty, no-drill ACS ROOF aluminum platform that bolts straight into the factory T-slot tracks on an RSI SmartCap with eight 8mm bolts. Sliding, adjustable load bars, laser-cut zinc-plated steel mounting brackets, and five fitment options from 5-foot to 6.5-foot beds, all made in the USA.
- Direct-mount, no-drill: bolts into the factory-installed track nuts on your SmartCap T-slot system with eight 8mm bolts, no drilling or fabrication
- 6061-T6 aluminum extrusions: custom bars deliver over 2x the yield strength of typical rack systems
- Zinc-plated steel mounting brackets: laser-cut from 1/8 inch steel for exact fitment and flex-free performance
- Five fitment options covering RSI SmartCap models from 5-foot to 6.5-foot bed lengths; other aluminum-rail truck caps will most likely fit if the rails fall within the listed adjustment range
- Load rating: 300 lbs off-road, 500 lbs on-road, 1,000 lbs static. Always check your vehicle manufacturer's roof load rating
- Modular, adjustable load bars slide into toothed channels so you can reposition gear or add bars as your setup grows
- Cross-brand compatible: works with many T-track accessories from Thule, Rhino-Rack, and Yakima
- Side-access, lockable storage ready: pairs with the GearPOD ROOF side-opening, water-resistant, locking storage box
- Expandable platform: add extra load bar kits to build out a solid, flat cargo surface
- Heavy-duty 1.5mm to 3.0mm multi-wall aluminum extrusions, more than twice as thick as typical platform racks
- Grade 10.9 black Zn-Ni coated fasteners with Loctite, zinc-plated with a dual-stage powder coat finish
- All mounting hardware included. Designed, engineered, and manufactured in the USA
Materials & construction
Shell material6061-T6 aluminum extrusions with laser-cut 1/8 in zinc-plated steel mounting brackets
ConstructionGrade 10.9 black Zn-Ni coated fasteners with Loctite; zinc-plated, dual-stage powder coat finish
Load capacity
Dynamic capacity (off-road)300 lbs
Dynamic capacity (on-road)500 lbs
Static capacity (parked)1,000 lbs
Vehicle fitment
CompatibilityRSI SmartCap truck caps, 5' to 6'6" beds (five part numbers). Max rail width / min rail length: 00-GTCR-1801 50" / 38"; 00-5.0MTCR-1802 40" / 38"; 00-5.6TCR-1803 48" / 38"; 00-6.6TCR-1804 48" / 44"; 00-6.6TCR72L-1988 48" / 62". Other aluminum-rail truck caps will most likely fit if the rails fall within these ranges.
Weight
Product weight45 to 56 lbs depending on size
- ACS ROOF platform rack with load bars
- all mounting hardware
- install guide
Authorized
Dealer
Dealer
Ride Off Grid is an authorized dealer of Leitner Designs. We carry the ACS ROOF platform rack because it's engineered and manufactured entirely in the USA, torture-tested over hundreds of thousands of off-road miles, and backed by a manufacturer warranty, and every order ships direct from Leitner's own facility in Corona, California.
Day or night: 608-351-0240 support@rideoffgrid.com
Delivery: Ships same or next business day
Ships from:
Corona, CA
Leitner Designs covers the ACS ROOF platform rack against defects in material and workmanship for two years from your purchase date, the same coverage it gives GearPODs and every other accessory in the Active Cargo System lineup. Normal use with reasonable maintenance is all that's required to stay covered.
Orders ship the same or next business day via UPS or USPS from Leitner's facility in Corona, California, based on the size, weight, and destination. Once a package is picked up by the carrier it can't be canceled, intercepted, or changed. Rerouting has to go through the carrier directly, and any related fees are the customer's responsibility. Questions about your shipment? Call 608-351-0240 or email support@rideoffgrid.com.
Change-of-mind returns are accepted within 30 days of delivery in original, unused packaging and are subject to a 25% restocking fee, with return shipping paid by the customer. If your rack arrives defective or damaged, contact us within 7 days at 608-351-0240 or support@rideoffgrid.com with photos and we'll arrange a replacement or refund at no cost to you.
We Love Talking Gear
Questions? Friendly US-based support is standing by. Live support. No AI.
608-351-0240
M-F 9AM-9PM · Sat & Sun 11AM-9PM
See it in action
Built for the Backcountry
The ACS ROOF rack pairs with Leitner's GearPOD ROOF box for secure, weatherproof storage wherever the trail leads.
Ready for Recovery
Mount traction boards, shovels, and recovery gear directly to the rack for fast access when you need it most.
Gear at Your Fingertips
The GearPOD ROOF box keeps your gear organized and within easy reach at camp.
Low Profile, High Capacity
A sleek, aerodynamic platform that adds serious carrying capacity without sacrificing your vehicle's lines.
Modular storage that adapts to you
Configure load bars and GearPOD ROOF storage to match every trip.
Backed by the manufacturer warranty
Built and warrantied to handle real trail use, every time.
Explore ACS ROOF Vehicle Racks
